Netgear

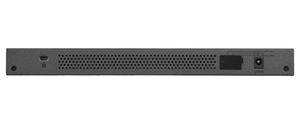

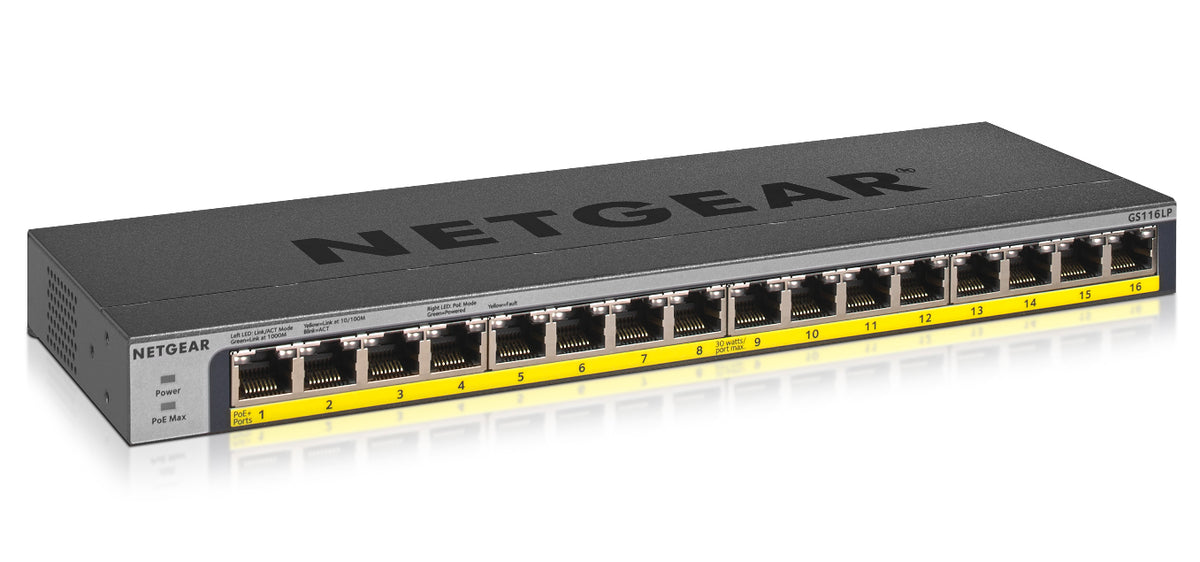

Netgear 16-PORT POE POE+GB Unmgd Switch 76W
Ingram SKU: 0714417
Netgear 16-PORT POE POE+GB Unmgd Switch 76W. Instant Connectivity with Reliable Performance The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations. They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks. High quality components and Energy Efficiency Unmanaged Gigabit switches are built with Top Quality components to assure a long life. Unmanaged switches are built to last, and rigorously tested to provide the reliability businesses need. NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active ports or when there is no link or no activity detected. It can further save energy when a short cable is used. PoE+ Support (GS108LP,GS108PP,GS116LP,GS116PP) Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other Ethernet-powered devices. These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE Power. Thanks to the interchangeable external Power Supply and with a built-in PoE selector they allow you to increase or decrease the PoE budget at any time. The flexible mounting system gives you the flexibility to place them in a desktop environment, mounted in a rack (accessories included) or wall-mounted.
At a glance
This product is supplied through CyberScot's authorised distribution channel and backed by clear UK pricing and availability. The most useful specifications are summarised below so you can compare it quickly without decoding a supplier title.
Product highlights
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity: 0
- Installed SFP+ modules quantity: 0
- Gigabit Ethernet (copper) ports quantity: 16
- Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- 10G support: No
- Flow control support: Yes
- MAC address table: 4000 entries
Key specifications
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
| MAC address table | 4000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Buffer size | 1000 KB |
| Mean time between failures (MTBF) | 2088514 h |
| Power source | DC/PoE |
| DC input voltage | 54 V |
| Input current | 1.66 A |
| Power consumption (typical) | 90 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Manufacturer part number | GS116LP-100EUS |
| EAN / UPC | 0606449133356 |
| Product category | Commun/Networking |
Buying for a team?
CyberScot can help with compatibility checks, configuration, deployment and volume orders. Request a custom quote if you need several units, a standard build or advice before ordering.
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Gigabit Ethernet (copper) ports quantity
- 16
- Networking standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- 10G support
- No
- Flow control support
- Yes
- MAC address table
- 4000 entries
- Switching capacity
- 32 Gbit/s
- Jumbo frames support
- Yes
- Rack mounting
- Yes
- Product colour
- Black
- LED indicators
- Yes
- Number of fans
- 1 fan(s)
- Buffer size
- 1000 KB
- Mean time between failures (MTBF)
- 2088514 h
- Power source
- DC/PoE
- DC input voltage
- 54 V
- Input current
- 1.66 A
- Power consumption (typical)
- 90 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Manufacturer
- Netgear
- Product type
- Commun/Networking
- SKU
- 0714417
- Manufacturer part
- GS116LP-100EUS
- EAN
- 0606449133356
- Title
- Default Title
Need a specification confirmed? Ask CyberScot before ordering and we will check it against the manufacturer record.
